Modular Heat Tech For Industrial IR Processing For Composite Bonding
Infrared can not be beaten when it comes to providing a bespoke solution for additional heat source.
Victory offers a modular system to help get heat to your specific area fast & efficiently

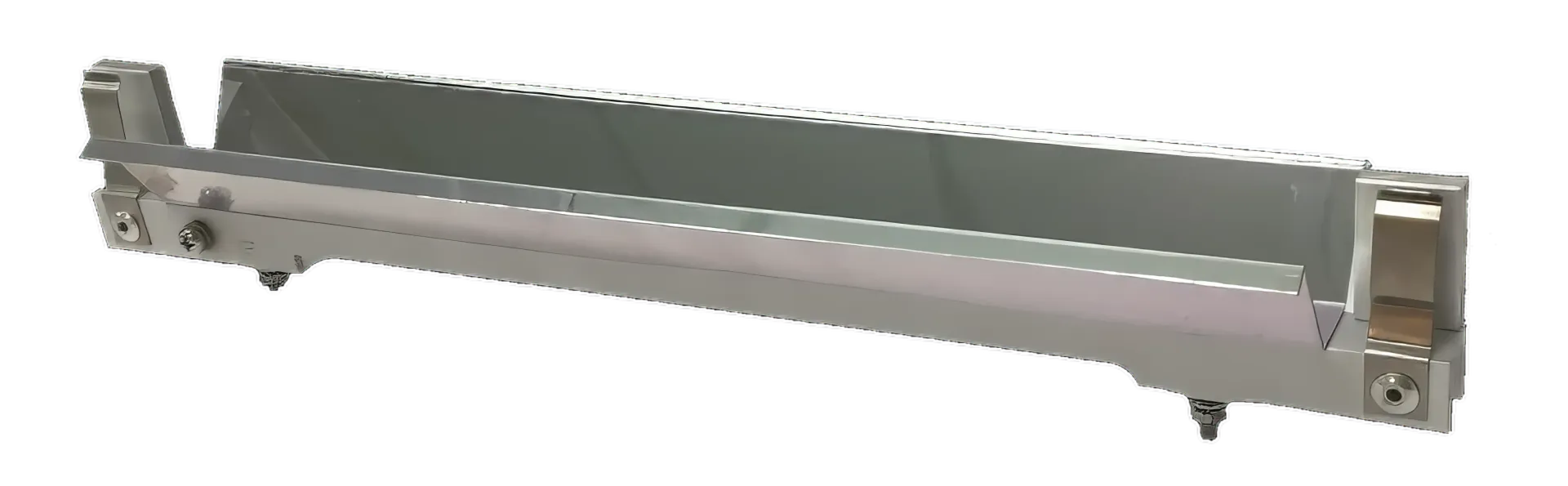

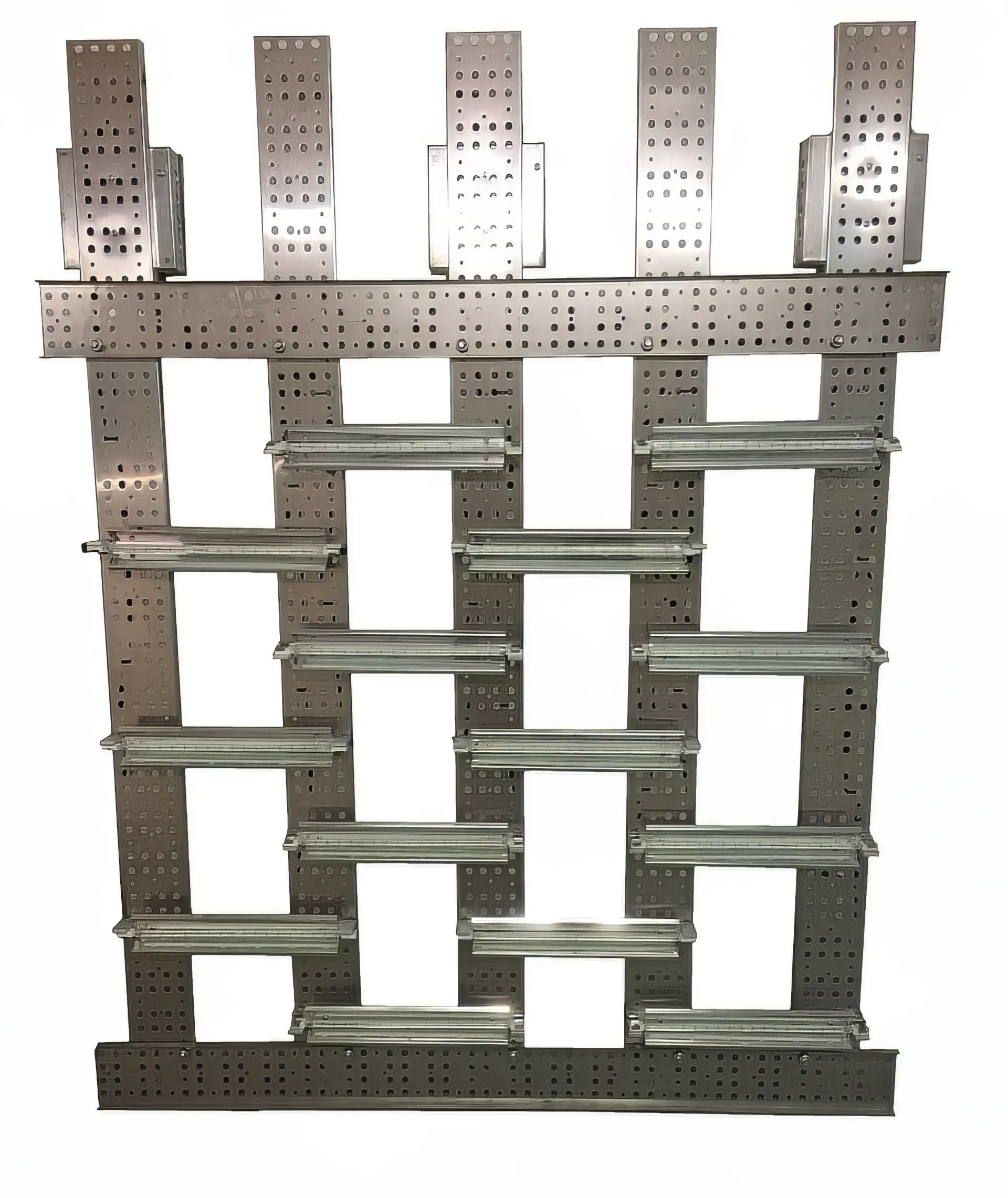

Our standard 14kW modular strap assembly allows a large heating area for a variety of applications with an array of 14 x 1kW short wave quartz lamps mounted with reflectors onto the modular strap framework. It provides a fast, efficient, convenient and bespoke heat source.

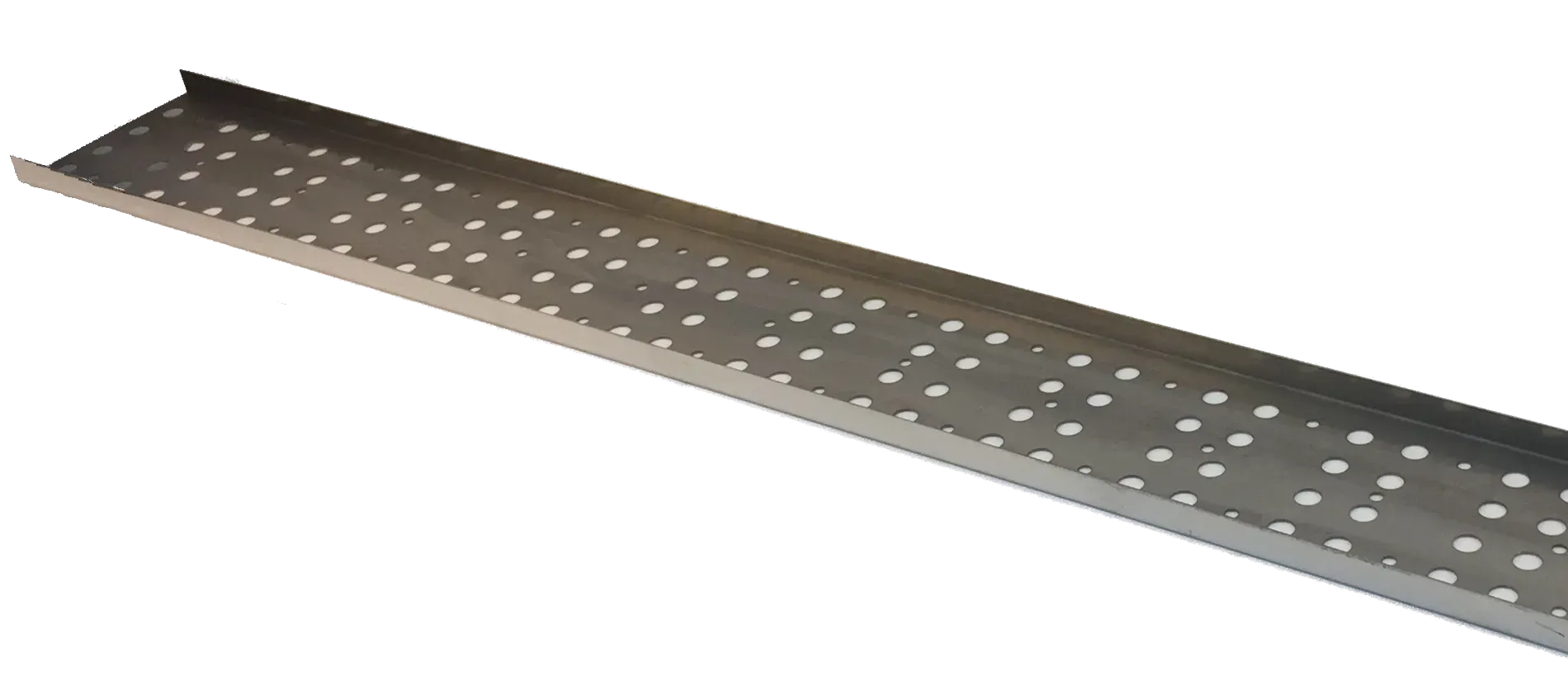

The Modular Strap allows for your own bespoke application where the straps can be assembled in a variety of configuration to suit your specific need with any number of lamps arranged to suit the application.
The lamps would be wired into one or more terminal boxes into which your mains power would be connected via your own control system, whether that be a timer or dimmer controller.
Victory supply a suitable timer controller capable of controlling up to 14kW which is suitable for most needs. For additional details contact our offices about the VLMST controller.
Typical Applications & Features
- Suitable for paint drying large painted areas such as on buses, rail carriages etc.
- Drying stainless cabinets after washing

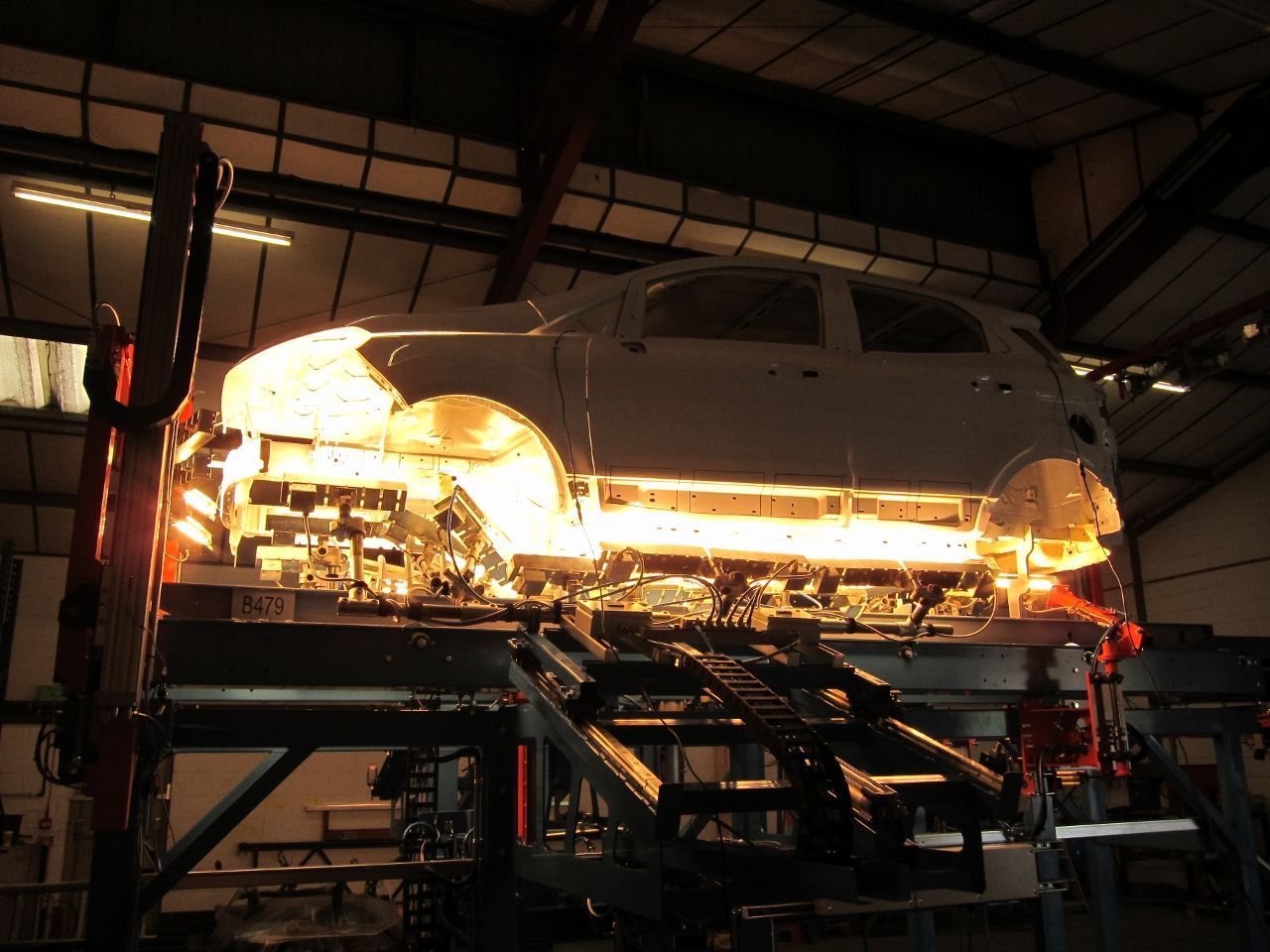

- composite bonding
- Curing laquer on engineering production lines
- Lamp life: 5000 hours
| Code | Lamp | Total Watts | Volts | Fitting Finish |
|---|---|---|---|---|
| HT14 | Reflector | 14000 | 415-3Phase | Galvanised |
This system can also be configured and made to your own specific requirement with a size & arrangement plus number of lamps to suit your application.
Consider this timer unit for your application
Victory supply a suitable 3-Phase timer capable of controlling up to 14kW which is suitable for most needs.
Ask about our VLMST timer.
